Mastering Sheet Metal Processing: A Comprehensive Guide

Sheet metal processing is an important processing process in many industries, including automotive, aerospace, and electronics. It is a multifaceted technology that involves reshaping flat sheets of metal into products. From structural components to detailed designs, the versatility of sheet metal makes it an essential part of modern manufacturing. To do this, we will guide you through the characteristics of sheet metal and its basic processing techniques, which will help you explore its applications and intricacies.

Before we go too deep into any core processes, it is important that we understand some of the properties of sheet metal. These features affect the behavior of metal in the processing stage and affect the end application of the metal.

Steel, aluminum, and stainless steel are the most common sheet metal processing materials. Each of these materials has specific properties that enable them to be used successfully in specific industries and for certain applications. Steel is known for its strength and durability which makes it the best for structuring components. Aluminum, in contrast, is lightweight and corrosion-resistant, often found in automotive and aerospace applications. Stainless steel is strong and resistant to rust, so it is widely used in food processing and medical equipment.

Gauge and thickness are important factors in defining the strength of a metal and its workability. Gauge refers to the thickness of the sheet (a lower number indicating a thicker sheet). The strength, formability, and the amount of pressure that will be needed during processes such as bending or punching are directly influenced by thickness of the metal. These properties assist manufacturers in making informed decisions about the best material for the job, striking a balance between strength and ease of processing.

It is important to have information about the material’s mechanical properties, including tensile strength, yield strength, and ductility, in order to understand its behavior under stress. Tensile strength is a measure of how much pulling force a metal can resist; yield strength defines the point at which a metal begins to deform. We need ductility, the ability to stretch without breaking, for processes such as deep drawing or bending. These properties play a vital role in choosing the right material for various applications to make sure that the final product fulfills certain performance criteria.

Heat treatment processes, To alter the metal’s overall mechanical behavior, thermal properties are adjusted through heat treatment processes (annealing and quenching). Its hardness, strength, and flexibility can all shift when you heat and cool the metal. These processes are especially beneficial in applications for which specific qualities of metals are desirable, including within tooling or structures.

Sheet metal processing involves a variety of techniques that transform flat metal sheets into functional and durable components. Let’s look at the essential processes in sheet metal fabrication.

The cutting process is fundamental in sheet metal fabrication, allowing manufacturers to create precise shapes from large metal sheets.

Shearing: A traditional method for straight cuts, shearing involves the use of two blades to cut the metal along a straight line. It is ideal for simple, straight-line cuts and large-volume production.

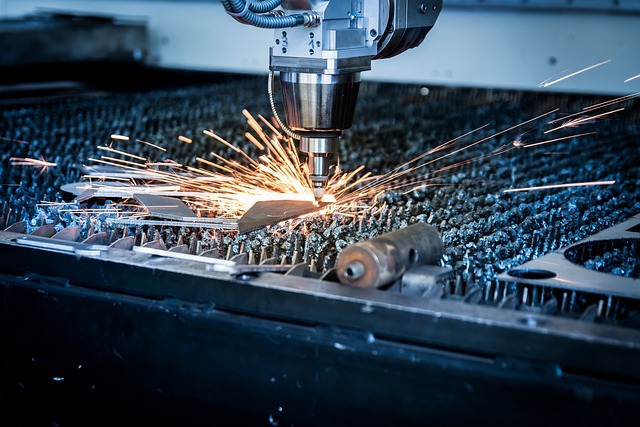

Laser Cutting: A more advanced cutting method, laser cutting uses high-powered lasers to make precise, intricate cuts. This technique is perfect for complex designs and thin metals, offering high accuracy with minimal waste.

Waterjet Cutting: In waterjet cutting, a high-pressure stream of water mixed with abrasives cuts through metal. Unlike laser cutting, this method produces no heat-affected zone, making it ideal for materials that are sensitive to thermal changes, such as composites or ceramics.

Bending is the process of deforming sheet metal to create a specific angle or shape, and it is essential for shaping components used in many industries.

Press Brakes: In press brake bending, a hydraulic or mechanical press applies force to the metal sheet, bending it into the desired angle. This is one of the most common bending techniques, used for both simple and complex shapes.

Bending Machines: For more intricate shapes and angles, specialized bending machines are used. These machines provide precise control over the bending process, enabling manufacturers to achieve tight tolerances and complex geometries.

Punching and stamping are used to create holes, slots, and other features in sheet metal.

Punching: In punching, a punch and die are used to create holes or shapes in the metal sheet. This process is highly efficient for mass production, particularly for creating uniform holes.

Stamping: Stamping is used for mass production of identical parts. It involves using a die and press to form shapes, patterns, and holes in the metal sheet, typically for automotive, appliance, and electronic components.

While basic sheet metal processes are fundamental, advanced technologies enable the production of highly complex and precise components.

Hydroforming uses high-pressure hydraulic fluid to shape sheet metal, allowing for complex geometries that would be difficult to achieve through traditional methods. This technique is widely used in automotive manufacturing, particularly for producing parts such as exhaust systems and vehicle body panels.

Deep drawing is a process in which a flat metal sheet is pulled into a mold to form deep, hollow parts. It is commonly used for producing items like beverage cans and automotive body panels. This technique requires precise control of pressure, temperature, and material properties to avoid defects like wrinkles or tearing.

Stretch forming involves stretching a sheet of metal over a die to achieve curved, complex shapes. This technique is often used in the aerospace and automotive industries for lightweight structural components.

Achieving excellence in sheet metal processing is a multi-faceted challenge. From the precision of forming to the quality assurance methods, and finally, the finishing touches, each stage plays a crucial role in producing high-quality products. The trifecta of sheet metal excellence—forming, quality assurance, and surface finishing—determines the final product’s performance, appearance, and durability. In this article, we will explore these core areas in detail, offering insights into overcoming challenges and optimizing processes for maximum efficiency and output.

Forming is the foundation of sheet metal fabrication, involving transforming a flat sheet into a three-dimensional part. Achieving perfection in this process requires precision and careful attention to factors like material behavior and tool design.

Die Design and Tooling: The Heart of the Forming Process

Die design and tooling form the core of the sheet metal forming process. These tools directly influence the accuracy and efficiency of the operation. A well-designed die ensures that the metal forms into the desired shape without defects. Tools need to be tailored to the specific material, thickness, and geometry of the part. Precision in tooling also reduces scrap, increases throughput, and minimizes the need for rework. For manufacturers, investing in high-quality tools leads to longer-lasting, more reliable products.

Springback and its Compensation: Controlling Metal Deformation

Springback is a common phenomenon in metal forming where the material slightly returns to its original shape after the force is removed. This occurs due to the elastic nature of metals, especially when bending. Controlling springback is essential to achieving the desired final shape, particularly when working with high-strength materials. Techniques like overbending or adjusting tool geometry are commonly used to compensate for springback and ensure that the metal retains its intended shape after forming.

Forming Limits and Wrinkling: Avoiding Common Defects

Forming limits refer to the maximum strain a metal can endure without failure, and wrinkling occurs when the metal deforms improperly during the forming process. To avoid defects like wrinkling, manufacturers need to carefully control factors such as tool design, material selection, and process parameters like speed and pressure. Effective simulation tools can predict potential forming issues, allowing manufacturers to fine-tune their processes and avoid costly mistakes.

Quality assurance (QA) ensures that sheet metal parts meet required specifications and industry standards. By implementing proper inspection techniques and maintaining process consistency, manufacturers can deliver products that are both functional and reliable.

Inspection Techniques: Visual Inspection, Dimensional Measurement, and Material Testing

Inspection techniques are crucial for verifying the quality of sheet metal parts. Visual inspection helps to identify surface defects such as scratches or dents, while dimensional measurement ensures that the part meets the specified tolerances. Material testing is often used to assess properties like tensile strength and hardness. A comprehensive inspection routine that combines these techniques ensures that each part is free from defects and meets all functional requirements.

Statistical Process Control (SPC): Monitoring and Improving Process Quality

Statistical Process Control (SPC) is a method used to monitor and control the sheet metal fabrication process. By collecting and analyzing data from production, SPC helps identify variations that might lead to defects. This data-driven approach allows manufacturers to make proactive adjustments, ensuring consistent quality and reducing the risk of costly rework. Integrating SPC with automation systems can enhance its effectiveness, providing real-time feedback on process performance.

The surface finish of a sheet metal part significantly impacts both its appearance and performance. Finishing processes protect the part from corrosion, enhance its aesthetic qualities, and prepare it for further treatment.

Cleaning and Deburring: Preparing the Surface for Further Treatment

Cleaning and deburring are the initial steps in preparing sheet metal for surface finishing. Cleaning removes oils, dust, and other contaminants, ensuring that coatings adhere properly. Deburring eliminates sharp edges and burrs that form during cutting and punching, making the part safer to handle and improving its overall appearance. These processes not only ensure aesthetic quality but also prepare the part for coating or plating, ensuring uniform application and durability.

Coating and Plating: Protecting and Enhancing the Appearance

Coating and plating are essential steps in enhancing both the function and look of sheet metal parts. Coatings like powder coating provide a durable finish that resists scratches, fading, and corrosion. Plating, such as electroplating or hot-dip galvanizing, adds a thin layer of metal (often zinc) to protect against rust and wear. These finishes improve the lifespan of parts, especially when they are exposed to harsh environmental conditions.

Painting and Powder Coating: Durable and Aesthetically Pleasing Finishes

Painting and powder coating are the final steps in many sheet metal processes. Painting provides an attractive finish but may be less durable than powder coating. Powder coating, on the other hand, creates a more robust, long-lasting finish. This process uses dry powder that is baked onto the surface, resulting in a uniform, highly resistant coating. Both methods can improve the aesthetic appeal of sheet metal parts while offering varying degrees of protection.

The sheet metal fabrication industry faces several challenges that require innovation and expertise to overcome. Material properties, tool maintenance, and process optimization all play a role in ensuring high-quality production.

Material Mastery: Selecting the Right Material for the Job

Material selection is one of the most important decisions in sheet metal fabrication. The right material affects not only the performance of the final part but also the ease and cost of the manufacturing process. Factors such as strength, corrosion resistance, weight, and formability should be carefully considered. Materials like stainless steel offer durability, while aluminum is ideal for lightweight applications. Ensuring the right material is chosen from the start reduces waste and improves both quality and efficiency.

Grain Direction and Its Impact: Understanding the Metal’s Orientation

Grain direction plays a crucial role in how sheet metal behaves during forming. The metal’s grain affects its ability to stretch, bend, and form without failure. Understanding the grain direction is particularly important in operations like bending and deep drawing, where improper alignment can lead to defects like tearing or wrinkling. Manufacturers should always take the grain direction into account during the design phase to ensure optimal part quality.

Tool Triumph: Maximizing Efficiency and Precision

Tool design and manufacturing are key to ensuring efficient and precise sheet metal processing. Tool maintenance is just as important—well-maintained tools last longer, provide more consistent results, and reduce downtime. Tools should be regularly inspected, cleaned, and replaced when necessary to ensure they continue to perform at peak efficiency.

In an increasingly competitive market, manufacturers must balance cost optimization with quality. Lean manufacturing and efficient material selection are critical to reducing production costs while maintaining high standards.

Lean manufacturing principles are aimed at reducing waste and increasing operational efficiency. By identifying and eliminating non-value-added processes, manufacturers can reduce cycle times, improve throughput, and lower overall production costs. Lean methods such as continuous improvement (Kaizen) and just-in-time (JIT) production can significantly streamline the sheet metal fabrication process.

Cost-effective material selection is a delicate balance. While opting for cheaper materials can lower production costs, it may sacrifice quality or performance. Manufacturers must carefully weigh material costs against the long-term durability and functionality of the part. By using materials that provide the best performance for the price, manufacturers can reduce waste and enhance overall value.

The future of sheet metal processing lies in innovation and sustainability. Emerging technologies and sustainable practices are driving the industry toward more efficient, environmentally friendly production.

The Industry 4.0 revolution is transforming sheet metal fabrication through automation and robotics. Robots and automated systems increase productivity, reduce human error, and lower labor costs. Meanwhile, digital manufacturing tools like 3D printing and simulation software allow for rapid prototyping and precision manufacturing, pushing the boundaries of what’s possible in sheet metal fabrication.

The adoption of advanced materials, such as high-strength steel and lightweight alloys, is improving the strength-to-weight ratio of parts while reducing material usage. Additionally, sustainable solutions, including recycling and energy-efficient processes, are minimizing environmental impact. Manufacturers are increasingly incorporating recyclable materials and adopting green manufacturing technologies to ensure that their operations are not only cost-effective but also environmentally responsible.
