Everything You Need to Know about CNC Machining Services

CNC machining stands for “Computer Numerical Control” machining, where computers control machines to shape materials into precise parts. This technology is crucial in modern manufacturing because it ensures parts are made accurately and consistently, which is vital for industries like aerospace and automotive that require high precision. Additionally, CNC machining speeds up production and minimizes errors. In this guide, you’ll learn what CNC machines are and how they work, the different types of CNC machines, common materials used, the basic steps involved, and tips to improve your skills. By the end, you’ll have a solid understanding of CNC machining, even if you’re a complete beginner. Let’s get started

CNC stands for Computer Numerical Control. A process used in manufacturing where computers control machine tools. These machines can cut, shape, and create parts from various materials like metal, plastic, and wood. Imagine a robot artist shaping a block of material into a masterpiece with precision and consistency.

In simple terms, CNC machining is a way to control machine tools using a computer. The computer takes a digital design from software and converts it into instructions for the machine to follow. This allows for highly accurate and consistent production of complex parts.

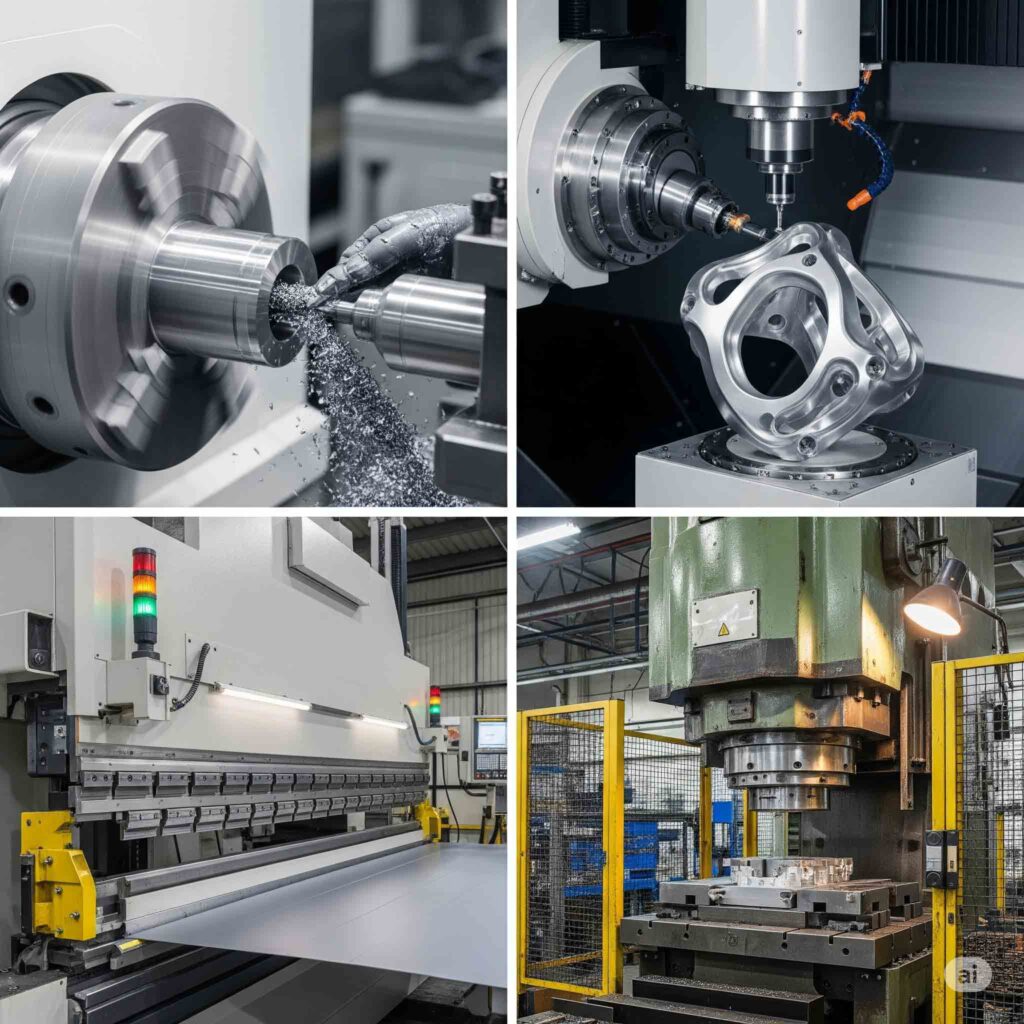

There are several types of CNC machines, each designed for specific tasks. Here are some of the most common ones:

1. CNC Milling Machines: These machines use rotary cutters to remove material from a workpiece. Milling machines can perform various operations, such as facing, slotting, and drilling. They provide versatility and people use them to create complex shapes and parts.
2. Operators use CNC lathes for turning operations. They rotate the workpiece around a fixed cutting tool to shape it. Lathes are ideal for creating cylindrical parts like shafts and bolts.
3. CNC Plasma Cutters: These machines use a high-velocity jet of ionized gas (plasma) to cut through metal. Industries commonly use plasma cutters for metal cutting, such as automotive and construction.
4. CNC Laser Cutters: Laser cutters use a focused beam of light to cut or engrave materials. They are highly accurate and can cut intricate designs. People use laser cutters for materials like metal, plastic, wood, and even fabric.
5. CNC Routers, like milling machines, cut softer materials such as wood, plastic, and foam. Woodworking and sign-making industries commonly use them.
6. CNC EDM (Electrical Discharge Machining): EDM machines use electrical sparks to erode material. They are used for hard metals and for creating intricate shapes that are difficult to machine with

Choosing the right material is crucial for the success of your CNC machining project. Here are some tips to help you make the best choice:

• Understand the Application: Think about what the part will be used for. Does it need to be strong, lightweight, heat-resistant, or electrically conductive? Knowing the requirements will help narrow down your material choices.
• Consider Machinability: Some materials are easier to machine than others. If you’re new to CNC machining, using aluminum or ABS plastic can give you good results with less difficulty.
• Check Availability and Cost: Some materials are more expensive or harder to find than others. Make sure the material you choose is readily available and fits within your budget.
• Evaluate Surface Finish Requirements: Different materials yield different surface finishes. If a smooth finish is essential, materials like certain plastics or aluminum might be better choices.
• Please consider the environmental conditions in which you will use the part. Will it encounter moisture, chemicals, or extreme temperatures? Choose a material that can withstand these conditions.

CNC machining may sound complex, but when you break it down into steps, it becomes much more manageable. Here’s a simple rundown of the process starting from V-ing to finish:

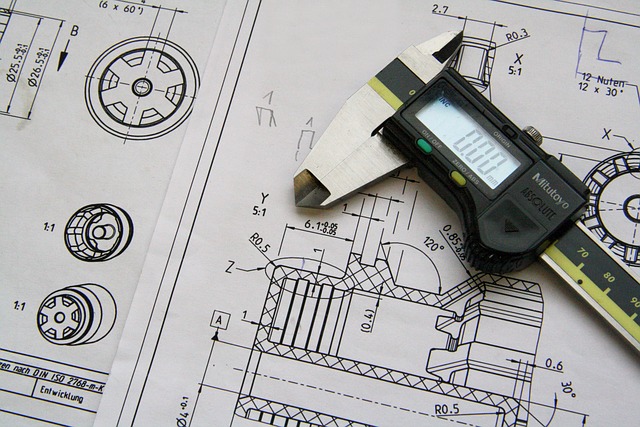

(1)Concept and Design: Everything starts with an idea or a concept. CAD (Computer-Aided Design) software turns this idea into a detailed design. The CAD software helps create precise 2D or 3D models of the part you want to produce.

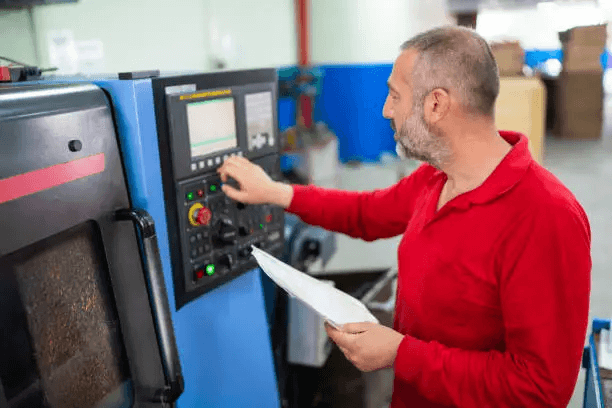

(2)Programming: Once the design is ready, it needs to be translated into a language that the CNC machine can understand. CAM (Computer-Aided Manufacturing) software does this. The CAM software takes the CAD model and converts it into G-code and M-code.

(3)Machine Setup: Before machining can start, the machine needs to be set up. This involves selecting and installing the right tools, securing the workpiece, and defining the origin point on the material.

(4)Machining: With the setup complete, the CNC machine follows the instructions provided by the G-code. The machine moves the cutting tool along the specified paths to shape the material into the desired form.

(5)Inspection and Quality Control: The team inspects the part after machining to ensure it meets the required specifications. This can involve measurements, surface finish checks, and other quality control methods.

(6)Finishing: Sometimes, additional finishing processes like sanding, polishing, or coating are needed to complete the part.

To ensure optimal performance and safety, the setup and operation of a CNC machine must be carefully executed by following a structured process. Below, we provide detailed content to guide operators through each critical step.

Preparation of the Machine:

• Clean the Machine: Ensure the CNC machine is free from any debris or leftover materials from previous jobs.
• Power On: Turn on the CNC machine and perform a system check to confirm that all components are functioning correctly.
• Lubrication: Apply necessary lubricants to the moving parts as recommended by the machine’s manual.

Loading Required Tools:

• Tool Selection: Choose the appropriate tools for the job based on the material and the type of cut required.
• Tool Installation: Carefully install the selected tools into the spindle or tool holder, ensuring they are securely fastened.

Setting Up the Workpiece:

• Material Preparation: Measure and cut the material to the required dimensions.
• Workpiece Positioning: Secure the workpiece on the machine bed using appropriate fixtures or clamps to prevent movement during machining.

Calibration:

• Zeroing the Machine: Set the machine to its home position, or zero point, to establish a reference for all subsequent operations.
• Coordinate System Setup: Input the work coordinates into the machine’s control system to match the physical setup of the workpiece.

Tool Selection:

• Tool Path Verification: Confirm that the selected tools can execute the programmed tool paths without interference.
• Tool Length Measurement: Measure and input the exact length of each tool into the machine’s control system to ensure precision.

Protective Equipment:

• Wear Safety Gear: Always wear safety glasses, ear protection, and appropriate clothing to safeguard against potential hazards.
• Avoid Loose Clothing: Ensure that clothing and accessories do not hang loose to avoid being caught in moving parts.

Workspace Safety:

• Clear Obstructions: Keep the workspace free of unnecessary items and debris to prevent tripping or interference with the machine.
• Emergency Stops: Familiarize yourself with the location and operation of emergency stop buttons and switches.

Informed Adjustments:

• Process Optimization: An experienced operator can make real-time adjustments to improve the machining process, such as altering feed rates and spindle speeds.

Troubleshooting:

• Issue Identification: Quickly identify and resolve common problems, such as tool wear or vibrational issues, to maintain continuous operation.

Securing the Workpiece:

• Use of Vices and Clamps: Secure the workpiece using vices, clamps, or other workholding solutions to ensure it remains stationary.

Tool Selection:

• Appropriate Tooling: Select tools based on the material, type of machining (e.g., milling, turning), and desired finish.

Inputting Program Codes:

• G-Code Entry: Input or upload the correct G-code program that defines the tool paths and machining operations.

Tool Misalignment:

• Verification: Double-check the alignment of tools before starting the machining process.
• Test Runs: Perform test runs to verify the accuracy of tool paths and make necessary adjustments.

Incorrect Program Codes:

• Program Review: Review program codes for errors or inconsistencies before execution.

Simulation: Use simulation software to preview machining operations and identify potential issues.

Importance of Fixturing:

• Secure Placement: Proper fixturing ensures that the workpiece is held firmly, reducing the risk of movement and improving precision.
• Custom Fixtures: Utilize custom fixtures when standard solutions are inadequate for holding complex-shaped workpieces.

Workholding Techniques:

• Use of Jigs: Implement jigs to maintain consistent alignment and positioning for repetitive tasks.
• Vacuum Tables: For flat workpieces, vacuum tables can provide an effective means of workholding.

By meticulously following these instructions, operators can achieve high-quality results and maintain a safe working environment. Proper setup, calibration, and adherence to safety guidelines are essential to the successful operation of CNC machines.

When you’re designing a part for CNC machining, it’s crucial to think about how it will actually be made. Why? Because some designs might be easy to draw but tough—or even impossible—to machine. If you keep CNC machining in mind from the start, you’ll save time, money, and a lot of headaches.

Design for manufacturability (DFM) means creating designs that are easy to manufacture. Here are some DFM principles specific to CNC machining:

• Simplify Geometry: The simpler, the better. Complex shapes can be harder and more expensive to machine.
• Standardize Features: Use standard hole sizes, thread types, and radii. This can save on tooling costs.
• Minimize Setups: Design parts that require fewer machining steps. Each setup change can add to the time and cost.
• Select Appropriate Materials: Some materials are easier to machine than others. For example, aluminum is generally easier to machine than stainless steel.

To make your designs more efficient for CNC machining, consider these tips:

• Use Uniform Wall Thicknesses: Thin walls can be tricky and may deform. Aim for uniform thickness to ensure stability.
• Add Fillets to Internal Corners: Sharp internal corners are hard to machine. Adding a small radius (fillet) can make the process smoother.
• Avoid Deep Cavities: Deep pockets require longer tools, which can be prone to vibration and deflection. If you need a deep cavity, try to design it in steps.
• Plan for Tool Access: Ensure the cutting tool can reach all the necessary areas without obstacles.
• Optimize Hole Depths: Deep holes are challenging. Keep hole depths to around 3-4 times the diameter for easier machining.

Even seasoned designers can slip up. Here are some common mistakes and tips to avoid them:

• Ignoring Tool Constraints: Forgetting that some shapes can’t be easily machined with certain tools. Always think about tool geometry and limitations.
• Overlooking tolerances: specifying overly tight tolerances where they aren’t needed can dramatically increase costs. Only use tight tolerances where absolutely necessary.
• Excessive Detail: Adding unnecessary details increases machining time and cost. Keep designs as simple as possible without sacrificing function.
• Not Considering Material Waste: Design parts to minimize waste. This isn’t just about cost but also environmental responsibility.

Using the right software can make a world of difference. Here are some popular options:

1.CAD Software: Programs like AutoCAD, SolidWorks, and Fusion 360 help you create detailed 3D models of your parts.

2.CAM Software: Computer-Aided Manufacturing (CAM) software like Mastercam, HSMWorks, or Fusion 360’s integrated CAM module helps in creating the actual tool paths that the CNC machine will follow.

3.Simulation Tools: These tools simulate the machining process before you even start cutting material. They help catch potential errors and optimize the process.

By following these guidelines, you’ll not only make life easier for the machinists but also ensure that your parts come out right the first time. This saves everyone time and money, and you’ll end up with a part that works exactly as you intended.

Quality control (QC) is critical in CNC machining. It ensures parts meet specified standards and function correctly in their intended applications. Here’s why quality control is essential:

• Consistency: QC ensures that every part produced is identical, which is crucial for parts that need to fit together precisely.
• Performance: High-quality parts perform better and last longer. This is especially important in industries like aerospace and medical, where failure can be catastrophic.
• Customer Satisfaction: Consistent quality keeps customers happy and reduces returns and complaints.
• Cost Efficiency: Catching defects early saves money. Fixing issues after production is far more costly than during the QC process.

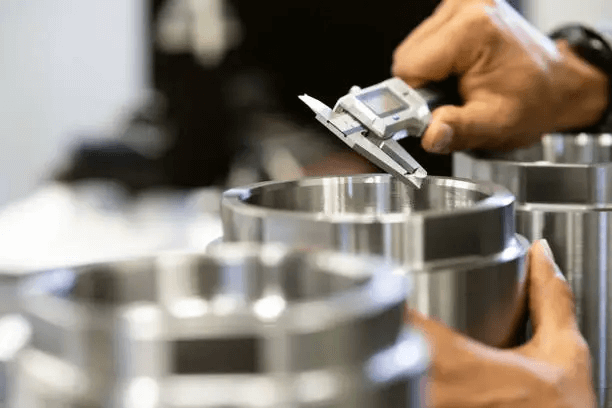

To ensure parts meet quality standards, various inspection methods are used. Here are some of the most common ones:

Coordinate Measuring Machines (CMM)

CMMs are precise devices used to measure the geometry of physical objects. They can capture complex shapes and ensure dimensions match the design specifications.

• How it Works: A probe touches various points on the part, and the machine records these points to create a detailed 3D map.
• Applications: Used for parts requiring high precision, such as aerospace components and medical devices.
• Advantages: Extremely accurate and can measure complex geometries that are difficult to assess with other methods.

Visual Inspection

This is the simplest form of inspection and involves looking at the part to check for obvious defects.

• How it Works: An inspector examines the part visually, often using magnifiers or microscopes for detailed checks.
• Applications: Used for surface defects, finish quality, and simple dimensional checks.
• Advantages: Quick and cost-effective for detecting surface-level issues.

Surface Roughness Measurement

Surface roughness affects how parts interact with each other, particularly in moving assemblies. Measuring roughness ensures parts meet the required smoothness.

• How it Works: Instruments like profilometers or roughness testers measure the texture of the surface. They provide readings that quantify how rough or smooth the surface is.
• Applications: Critical for parts like seals, bearings, and mating surfaces.
• Advantages: Provides a quantifiable measure of surface quality, ensuring parts meet functional requirements.

Even with thorough QC, issues can arise. Here are some common problems and how to address them:

Dimensional Inaccuracy

Symptoms:

• Parts are not fitting together as they should.
• Dimensions are off compared to design specifications.

Causes:

• Machine calibration issues.
• Tool wear or incorrect tool setup.
• Errors in the G-code program.

Solutions:

• Recalibrate the Machine: Ensure the machine is calibrated correctly.
• Check and Replace Tools: Inspect tools for wear and replace them if necessary.
• Review the Program: Double-check the G-code for errors.

Surface Finish Issues

Symptoms:

• Surface is rougher or smoother than specified.
• Visible tool marks or scratches.

Causes:

• Incorrect cutting speed or feed rate.
• Dull or inappropriate cutting tools.
• Improper coolant application.

Solutions:

• Adjust Cutting Parameters: Modify speed, feed rate, and depth of cut to achieve the desired finish.
• Tool Maintenance: Use sharp, appropriate tools for the material you are machining.
• Coolant Management: Ensure the use of proper coolant flow and type.

Material Defects

Symptoms:

• Cracks, voids, or inclusions in the material.
• Material not behaving as expected during machining.

Causes:

• Poor-quality raw material.
• Improper storage or handling of materials.

Solutions:

• Inspect Raw Materials: Check materials for defects before machining.
• Proper Storage: Store materials in a controlled environment to prevent damage.

Alignment and Positioning Errors

Symptoms:

• Features are not in the correct location.
• Holes or cuts are misaligned.

Causes:

• Workpiece not secured properly.
• Errors in the setup process.

Solutions:

• Secure the Workpiece: Ensure the workpiece is firmly clamped and aligned.
• Verify Setup: Double-check the setup before starting the machining process.

CNC machining is a cornerstone in many industries due to its precision, efficiency, and versatility. Here are some of the key sectors that rely on CNC machining:

The Aviation Industry demands high precision and quality. Manufacturers use CNC machining to create complex components like turbine blades, engine parts, and structural components.

• Turbine Blades: These components have complex shapes and must withstand extreme conditions. CNC machines can produce them with the required precision and consistency.
• Engine Parts: High-performance engines require parts that fit together perfectly. CNC machining ensures these components meet exact specifications.
• Landing Gear Components: CNC machining is used to create strong and accurate parts for landing gear, ensuring both safety and reliability.

From engine blocks to custom car parts, CNC machining plays a vital role in the Automotive Industry. It ensures high accuracy and consistency in part production.

• Engine Blocks: CNC machines carve out engine blocks with precision, ensuring all internal passages and surfaces are accurately formed.
• Custom Car Parts: Enthusiasts and manufacturers use CNC machining to create custom parts like rims, suspension components, and body kits.
• Transmission Components: The gears and shafts in transmissions are often made using CNC machining to ensure they meet high tolerance levels.

CNC machines produce precise and reliable Medical Devices and implants. This includes prosthetics, surgical instruments, and custom implants.

• Prosthetics: Custom prosthetic limbs are made to fit individual patients perfectly. CNC machines can produce these parts with high precision.
• Surgical Instruments: Tools like scalpels, forceps, and clamps need to be incredibly precise. CNC machining ensures they meet the stringent requirements of the medical field.
• Dental Implants: CNC machines create custom dental implants that are tailored to each patient’s anatomy.

The Electronics Industry uses CNC machining to create detailed components like circuit boards, connectors, and housings.

• Circuit Boards: CNC machines can create detailed circuit boards with precise pathways for electronic components.
• Connectors: Small, intricate connectors that are essential for electronic devices are often made using CNC machining.
• Housings: The protective casings for electronic devices, which need to be both precise and aesthetically pleasing, are produced using CNC machines.

The Manufacturing Industry utilizes CNC machining to produce precise and intricate parts such as gears, bearings, and engine components.

• Precision Gear Manufacturing: CNC machining creates gears with exact tooth profiles, ensuring smooth operation and longevity in mechanical systems.
• Bearing Production: CNC machines manufacture high-precision bearings, crucial for reducing friction in various machinery, including automotive and industrial applications.
• Engine Component Fabrication: CNC machining produces vital engine parts like pistons and crankshafts, meeting strict performance standards for reliability and efficiency.

The consumer goods industry leverages CNC machining to create high-quality and durable products such as custom furniture, kitchen appliances, and electronic enclosures.

• Custom Furniture Production: CNC machining crafts bespoke furniture pieces with intricate designs and precise dimensions, ensuring high quality and uniqueness.
• Kitchen Appliance Manufacturing: CNC machines produce components for kitchen appliances, offering durability and precision for items like blender blades and oven parts.
• Electronic Enclosure Fabrication: CNC machining creates durable and precisely fitted enclosures for electronic devices, protecting internal components and enhancing aesthetics.

CNC machining isn’t just about cutting simple shapes. Advanced techniques can produce incredibly complex and precise parts. Let’s dive into some of these cutting-edge methods:

Multi-Axis Machining is more advanced than basic three-axis machining. It can involve 4, 5, or even more axes for precision. This allows for the creation of complex geometries in a single setup.

Benefits:

• Complex Geometries: Machines can approach the workpiece from multiple angles, allowing for the creation of intricate shapes and undercuts.
• Less Setups: 5-axis machining allows for making intricate parts in one setup, saving time on moving the workpiece.
• Improved Surface Finish: The ability to tilt the cutting tool can result in smoother surfaces and reduced finishing work.

Applications:

• Aerospace: Creating complex turbine blades and structural components.
• Automotive: Machining intricate engine parts and custom components.
• Medical Devices: Producing prosthetics and custom implants with precise, complex shapes.

This technique uses higher spindle speeds and feed rates to cut materials faster. It’s perfect for intricate parts and can significantly reduce production time.

Benefits:

• Faster Production: Higher speeds mean shorter cycle times, increasing productivity.
• Better Surface Finish: Faster cutting speeds can produce smoother finishes, reducing or eliminating the need for additional polishing.
• Tool Life: High-speed machining can reduce the forces on cutting tools, extending their lifespan.

Applications:

• Mold Making: Producing detailed and accurate molds for plastic injection.
• Aerospace: Machining lightweight, high-strength components.
• Automotive: Creating finely detailed parts for engines and body components.

This involves making extremely small and precise parts. Think of components for medical devices or microelectronics. Micromachining requires specialized tools and techniques to achieve high precision on a tiny scale.

Benefits:

• Precision: Achieve extremely high levels of detail and accuracy.
• Miniaturization: Create tiny parts that would be impossible with traditional machining.
• Complexity: Manufacture parts with intricate features on a very small scale.

Applications:

• Medical Devices: Making tiny, precise components for surgical instruments and implants.
• Microelectronics: Producing small connectors, housings, and other electronic components.
• Watchmaking: Crafting tiny, intricate parts for high-quality timepieces.

• Turbine Blades: In the aerospace industry, turbine blades have complex shapes designed for maximum efficiency. 5-axis machining creates these intricate geometries with high precision and minimal setups.
• Injection Molds: High-speed machining can produce detailed molds with fine surface finishes. Manufacturers use these molds to create plastic parts with intricate details, such as phone cases or automotive components.
• Micro Gears: In micromachining, tiny gears with precise tooth profiles are used in medical devices and microelectronics. Producing these parts requires extreme accuracy and specialized micro-tools.
• Complex Medical Implants: Custom implants, like hip joints or dental implants, often require complex shapes and precise dimensions. Multi-axis machining crafts these parts to exact specifications, ensuring a perfect fit for each patient.

CNC machining comes with its own set of advantages and disadvantages. Understanding these can help businesses and engineers make informed decisions about its implementation.

Advantages of CNC Machining

(1)Precision and Accuracy: CNC machines are renowned for their high precision and accuracy. They can produce intricate and complex designs with tight tolerances, which is especially crucial in industries like aerospace and medical device manufacturing.
(2)Efficiency: Once programmed, CNC machines can run continuously 24/7, which significantly boosts productivity. They require minimal human intervention, allowing operators to focus on other tasks.
(3)Consistency and Repeatability: CNC machines follow the exact same instructions for each piece, ensuring uniformity and consistency across production runs. This repeatability is vital for mass production.
(4)Flexibility: CNC machines can be easily reprogrammed to produce different parts. This flexibility allows manufacturers to quickly switch between different products without extensive downtime.
(5)Safety: CNC machining reduces the risks associated with manual machining. The operator is not required to interact directly with the cutting tools, thereby minimizing the chances of accidents and injuries.
(6)Complex Designs: The technology allows for the creation of complex geometries that would be difficult or impossible to achieve with manual machining. This opens up new possibilities for innovative product designs.

Disadvantages of CNC Machining

(1)High Initial Cost: The investment required for CNC machines is significant. The cost of purchasing CNC equipment, along with the software and training, can be a barrier for small businesses or startups.
(2)Maintenance and Repair: CNC machines require regular maintenance to ensure they operate correctly. Repairing these machines can also be costly and time-consuming, especially if specialized parts or technicians are needed.
(3)Skilled Workforce: Operating and programming CNC machines requires a certain level of expertise. Finding and retaining skilled operators and programmers can be challenging.
(4)Complexity of Setup: Setting up a CNC machine for a new job can be time-consuming. The initial programming, tooling, and debugging need meticulous attention to detail, which can lead to longer lead times.
(5)Energy Consumption: CNC machines generally consume more power compared to manual machines. This increased energy consumption can lead to higher operational costs and environmental impact.
(6)Limited by Software Capabilities: The capabilities of CNC machining are inherently tied to the software that controls them. If the software is limited, it can restrict the complexity and variety of parts that can be produced.

Additive Manufacturing (AM), commonly known as 3D printing, is a revolutionary technology that constructs objects layer by layer from digital models. This method contrasts with traditional subtractive manufacturing, where material is removed from a solid block. Additive manufacturing has captured significant attention in various industries, including aerospace, automotive, healthcare, and consumer goods, due to its unique capabilities and transformative potential. However, like any technology, it comes with its own set of advantages and disadvantages.

Advantages of Additive Manufacturing

(1)Design Flexibility: AM allows for the creation of complex geometries that would be impossible or highly impractical with traditional manufacturing methods. This includes intricate internal structures, organic shapes, and custom designs tailored to specific needs.

(2)Prototyping Speed: One of the key benefits of AM is the ability to rapidly produce prototypes. This accelerates the design and development process, enabling faster iterations and reducing the time to market for new products.

(3)Material Efficiency: Since AM builds objects layer by layer, it uses only the material necessary for the part, resulting in minimal waste. This contrasts with subtractive methods that often leave scrap material.

(4)Customization and Personalization: AM excels at producing customized and personalized products without the need for specialized tooling. This is particularly beneficial in industries like healthcare, where custom implants or prosthetics can be produced based on individual patient anatomy.

(5)Supply Chain Simplification: With AM, parts can be produced on-demand and closer to the point of use, reducing the need for large inventories and the associated storage costs. This can also shorten supply chains and lead to more agile manufacturing practices.

Disadvantages of Additive Manufacturing

(1)Material Limitations: While the range of materials available for AM is expanding, it is still limited compared to traditional manufacturing methods. Not all materials can be used in AM, and those that can be used may not always exhibit the same properties as conventionally manufactured materials.

(2)Surface Finish and Precision: Parts produced by AM often require post-processing to achieve the desired surface finish and precision. This can add time and cost to the manufacturing process.

(3)Production Speed: AM can be slower than traditional manufacturing methods, especially for large-scale production. Building objects layer by layer is a time-consuming process, which may not be suitable for high-volume manufacturing.

(4)Cost of Equipment and Materials: The initial investment in AM equipment can be high, and the materials used can also be more expensive than those for traditional manufacturing. This can be a barrier for some businesses, particularly small and medium-sized enterprises.

(5)Mechanical Properties: The mechanical properties of AM parts can sometimes be inferior to those produced through traditional methods. Issues such as anisotropy (directional dependence of properties) and lower strength can limit the applications of AM parts.

CNC (Computer Numerical Control) Machining and Additive Manufacturing (AM) are two prominent manufacturing processes with distinct methodologies and applications. Below is a comparison of their main differences:

Choosing between these methods depends on your specific needs:

Use CNC Machining When:

• You need high precision and tight tolerances.
• The material is hard or tough (like certain metals).
• The part requires a smooth surface finish right out of the machine.

Use Additive Manufacturing When:

• The design is complex and has intricate details.
• You need a quick prototype to test and refine.
• You want to minimize material waste.

Interestingly, CNC machining and additive manufacturing can work together.

Here’s how:

• Hybrid Manufacturing: Some advanced systems combine both methods. For instance, a part can be 3D printed for its complex shape and then machined for precision features.
• Prototyping and Production: Use 3D printing for rapid prototypes and then switch to CNC machining for final production.
• Tooling: Create molds and fixtures using 3D printing, and then use CNC machining to produce the final parts.

When diving into the world of CNC machining, understanding the cost factors is crucial. Let’s break down what affects the price and how you can manage these costs without sacrificing quality.

Material Selection:

• The type of material you choose significantly impacts the cost. Metals like aluminum are generally cheaper than titanium or stainless steel.
• Harder materials not only cost more but also wear down the tools faster, leading to increased maintenance and tool replacement costs.
• Plastics are often cheaper but may not always meet the required strength or durability for your project.

Design Complexity:

• The more complex your design, the longer it takes to machine, which means higher costs.
• Intricate designs often require more sophisticated machines and additional programming time.
• Features like deep cavities or thin walls are more challenging to machine, adding to the expense.

Tolerances:

• Tight tolerances require more precise machining, which takes more time and effort.
• Achieving tighter tolerances might also mean slower cutting speeds and more frequent tool changes.

Simplify Your Design:

• Try to keep your design as simple as possible. Avoid unnecessary features that add to the machining time.
• Opt for standard sizes and shapes that are easier to machine.

Material Selection:

• Choose materials that are easier to machine. For example, aluminum is often a good balance between cost and machinability.
• If the application allows, consider using plastic instead of metal to save on material costs.

Optimize Tolerances:

• Use tight tolerances only where absolutely necessary. Over-specifying can unnecessarily drive up the costs.
• Keep in mind that different areas of your part may require different tolerances.

Batch Production:

• Producing in bulk can significantly reduce the cost per unit. We amortize setup time and costs over a larger number of parts.
• Discuss with your manufacturer what batch size offers the best cost efficiency.

Efficient Material Use:

• Design your parts to minimize waste. For instance, nesting multiple parts within a single piece of raw material can save costs.
• Consider the size and shape of the raw material to ensure you’re using it efficiently.

Design Adjustments:

Imagine you need a part with a complex internal cavity. You can save time and reduce tool wear by using a design with simpler intersecting holes.

Material Substitution:

Suppose an initial design of a part in stainless steel does not require extreme strength. Switching to aluminum can save money without compromising function.

Batch Production Example:

If you order 500 parts at once and run them together, it can save money compared to ordering smaller batches separately.

By paying attention to these factors, you can make informed decisions that balance cost and quality in your CNC machining projects. Always work closely with your machinist or manufacturing partner to find the best strategies tailored to your specific needs.

CNC machining services involve using computer-controlled machines to manufacture parts and products from various materials like metal, plastic, and wood. “CNC” stands for Computer Numerical Control. This means a computer controls the machine’s movements with high precision.

These services are valuable because they offer accuracy, repeatability, and efficiency. Businesses can produce complex parts quickly and with minimal error. This is especially important in industries where high precision is crucial, like aerospace and medical device manufacturing.

Several types of CNC machining services exist. Here are some of the most common:

CNC Milling: This process involves removing material from a solid block to create the desired shape. Think of it like sculpting but with a machine that follows exact instructions.

CNC Turning: You use this service to create cylindrical parts. The material spins while cutting tools shape it. It’s great for making things like bolts and shafts.

CNC Drilling: As the name suggests, this process is about making holes in materials. It’s straightforward but requires precision.

CNC Grinding: This involves using an abrasive wheel to remove material. You often use it for finishing touches to achieve a smooth surface.

CNC Electric Discharge Machining (EDM): This process uses electrical discharges to shape the material. It’s perfect for hard metals that are difficult to machine with traditional methods.

CNC machining services involve using computer-controlled machines to manufacture parts and products from various materials like metal, plastic, and wood. “CNC” stands for Computer Numerical Control. This means a computer controls the machine’s movements with high precision.

These services are valuable because they offer accuracy, repeatability, and efficiency. Businesses can produce complex parts quickly and with minimal error. This is especially important in industries where high precision is crucial, like aerospace and medical device manufacturing.

CNC machining services involve using computer-controlled machines to manufacture parts and products from various materials like metal, plastic, and wood. “CNC” stands for Computer Numerical Control. This means a computer controls the machine’s movements with high precision.

These services are valuable because they offer accuracy, repeatability, and efficiency. Businesses can produce complex parts quickly and with minimal error. This is especially important in industries where high precision is crucial, like aerospace and medical device manufacturing.

When it comes to CNC machining, there are some important legal and regulatory factors you need to be aware of. These considerations help protect your business, your customers, and ensure you stay within the law. Let’s break it down into easy-to-understand points.

Legal and regulatory considerations are crucial for several reasons:

• Protection: They help protect your business from lawsuits and financial losses.
• Reputation: Compliance with the law maintains your business reputation.
• Safety: Ensures the safety of your employees and customers.
• Quality: Helps in delivering products that meet industry standards.

Ignoring these can lead to fines, legal action, or even shutting down your business.

Confidentiality Agreements: These are also known as non-disclosure agreements (NDAs). They ensure that any sensitive information shared between parties stays private. For example, if you’re working on a new product design for a client, an NDA will protect both your work and the client’s idea.

Contracts: Contracts are formal agreements between you and your clients or suppliers. They outline the terms of the work, payment, deadlines, and responsibilities. This helps avoid misunderstandings and disputes.

Intellectual Property Rights: If you create a unique design or process, you might want to protect it with patents or trademarks. This prevents others from copying your work.

Every industry has its own set of regulations and standards. Here are a few examples relevant to CNC machining:

• ISO Standards: The International Organization for Standardization (ISO) sets guidelines for quality and safety. For CNC machining, ISO 9001 is particularly important. It focuses on quality management systems.
• OSHA Regulations: In the United States, the Occupational Safety and Health Administration (OSHA) sets rules to keep workplaces safe. This includes proper training, machine maintenance, and safety protocols.

Material-Specific Regulations: If you work with specific materials such as medical-grade metals or aerospace components, you must follow additional standards to ensure proper handling of these materials.

Stay Updated: Laws and regulations can change. Make it a habit to stay informed about any updates in your industry.

Training: Ensure you train all your employees in safety protocols and help them understand the legal requirements.

Documentation: Keep detailed records of all your processes, agreements, and compliance checks. This can be crucial if you ever face an audit or legal issue.

Seek Legal Advice: Consult with a legal expert who specializes in manufacturing or CNC machining. They can provide tailored advice for your business.

Quality Control: Implement strict quality control measures to ensure your products meet all regulatory standards.

By paying attention to legal and regulatory considerations, you protect your business and build trust with your clients. It may seem like extra work, but it’s an investment in your company’s future.

Certifications and training are crucial in CNC machining for several reasons. First, they ensure that machinists have the necessary skills and knowledge to operate CNC machines safely and efficiently.

Second, they help maintain high standards of quality and precision in manufacturing processes. Third, certified and well-trained machinists are more attractive to employers, enhancing job prospects and career growth. Finally, ongoing training keeps professionals up-to-date with the latest technologies and methodologies in the field.

Several certifications can enhance a machinist’s credentials and demonstrate their expertise. Here are some of the most recognized ones:

NIMS (National Institute for Metalworking Skills)

What It Is:

• A respected certification program for metalworking skills, including CNC machining.

Benefits:

• Validates skills and knowledge, making it easier to find employment.
• Recognized by employers nationwide.

Key Certifications:

• CNC Milling: Setup and Operations
• CNC Turning: Setup and Operations

SME (Society of Manufacturing Engineers)

What It Is:

• Provides a range of certification programs for different manufacturing skills, including CNC machining.

Benefits:

• Globally recognized and respected in the manufacturing industry.
• Demonstrates a high level of expertise and professionalism.

Key Certifications:

• Certified Manufacturing Technologist (CMfgT)
• Certified Manufacturing Engineer (CMfgE)

Haas CNC Certification

What It Is:

• Certification provided by Haas Automation, a leading CNC machine tool builder.

Benefits:

• Focuses on the operation and programming of Haas CNC machines.
• Provides practical, hands-on experience with Haas equipment.

Key Certifications:

• Haas CNC Operator
• Haas CNC Programmer

Several training programs are available to help machinists gain the necessary skills. These programs range from basic courses to advanced training.

Vocational and Technical Schools

What They Offer:

• Comprehensive courses covering the basics of CNC machining, including hands-on training.

Benefits:

• Provides foundational knowledge and skills.
• Often includes certifications upon completion.

Examples:

• Community colleges with machining programs.
• Dedicated technical schools specializing in manufacturing.

Online Training Programs

What They Offer:

• Flexible, self-paced learning modules covering various aspects of CNC machining.

Benefits:

• Ideal for working professionals looking to upgrade their skills.
• Accessible from anywhere with an internet connection.

Examples:

• Online courses from platforms like Coursera, Udemy, and LinkedIn Learning.

Apprenticeships

What They Offer:

• On-the-job training under the supervision of experienced machinists.

Benefits:

• Provides practical, hands-on experience in a real-world setting.
• Often leads to full-time employment upon completion.

Examples:

• Apprenticeship programs offered by manufacturing companies.
• Union-sponsored apprenticeship programs.

Choosing the right certification and training program is essential for career development. Here are some tips to help you make an informed decision:

Assess Your Career Goals:

• Determine what you want to achieve with the certification or training.
• Choose programs that align with your career aspirations.
• Research Program Reputation:
• Look for programs that are well-recognized and respected in the industry.
• Check reviews and testimonials from past participants.

Consider Hands-On Training:

• Opt for programs that offer practical, hands-on training.
• Real-world experience is invaluable in mastering CNC machining skills.

Check for Certification:

• Ensure that the program provides recognized certification upon completion.
• Certifications can enhance your employability and credibility.
• Evaluate Costs and Time Commitment:
• Consider the cost of the program and whether it fits your budget.
• Assess the time commitment required and ensure it fits your schedule.

In the world of CNC machining, having a solid supply chain and efficient logistics is crucial. Imagine you’re baking a cake. You need all the ingredients at the right time to ensure you can bake it perfectly. Similarly, in CNC machining, having the right materials, tools, and parts at the right time is essential for smooth operations.

A well-managed supply chain ensures that every component needed for the CNC machining process is available when required. This helps avoid delays, keeps costs down, and ensures the final product is of high quality. Without a reliable supply chain and logistics, projects can face significant delays, cost overruns, and even production stoppages.

Raw Materials:

• These are the basic materials needed for machining, like metals (aluminum, steel) or plastics.
• Suppliers play a critical role in delivering these materials on time.

Tooling and Machinery:

• Includes CNC machines, cutting tools, and other equipment.
• Regular maintenance and timely replacement of tools are vital for efficiency.

Inventory Management:

• Keeping track of materials and tools to ensure that there is no shortage or excess.
• Helps in planning and forecasting future needs.
• Distribution and Delivery.
• The process of getting the finished product to the customer.
• Involves packaging, transportation, and meeting delivery deadlines.

Supply Delays:

• Sometimes suppliers may not deliver materials on time. This can halt production.
• Solution: Build good relationships with multiple suppliers and maintain safety stock.

Quality Issues:

• Raw materials or tools may not meet quality standards.
• Solution: Implement strict quality checks and work with reputable suppliers.

Inventory Mismanagement:

• Either running out of materials or having too much can cause problems.
• Solution: Use inventory management software to track and forecast needs accurately.
• Transportation Problems:
• Delays or damage during shipping can impact delivery schedules.
• Solution: Work with reliable logistics partners and plan for buffer time.

• Build Strong Relationships with Suppliers: Good communication and trust with suppliers can ensure timely and quality deliveries.
• Use Technology: Utilize inventory management systems and real-time tracking to keep everything under control.
• Plan Ahead: Forecast needs based on past data and upcoming projects to avoid last-minute scrambles.
• Regular Reviews: Periodically review the supply chain and logistics processes to identify and fix any bottlenecks.
• Lean Manufacturing: Adopt lean manufacturing principles to minimize waste and improve efficiency.

By understanding and optimizing the supply chain and logistics, CNC machining operations can run more smoothly, be more cost-effective, and deliver better results. Whether you’re just starting out or looking to improve your processes, focusing on these aspects can make a big difference.

Market analysis is crucial in the CNC machining industry because it helps businesses understand the current landscape. By analyzing the market, companies can identify opportunities and threats. This, in turn, helps them make informed decisions about investments, expansions, and product development. In short, market analysis provides a roadmap for success.

The CNC machining market is growing rapidly. One of the main reasons is the increasing demand for precision and efficiency in manufacturing. Companies are looking for ways to produce high-quality products faster and cheaper. CNC machines fit the bill perfectly.

Another trend is the rise of automation. More and more factories are incorporating CNC machines to automate their processes. This not only reduces the need for manual labor but also minimizes errors.

The use of CNC machining in various industries like aerospace, automotive, and healthcare is also growing. These industries require parts that meet strict standards, and CNC machines provide the precision needed.

The CNC machining market can be divided into several segments:

• Type of Machines: Includes milling machines, lathes, grinders, and others.
• End-User Industries: Includes aerospace, automotive, healthcare, electronics, and others.
• Material Types: Includes metals, plastics, composites, and others.

Each segment has its unique needs and applications. For example, the automotive industry uses CNC machining for engine parts, while the healthcare industry uses it for surgical instruments.

• Build Strong Relationships with Suppliers: Good communication and trust with suppliers can ensure timely and quality deliveries.
• Use Technology: Utilize inventory management systems and real-time tracking to keep everything under control.
• Plan Ahead: Forecast needs based on past data and upcoming projects to avoid last-minute scrambles.
• Regular Reviews: Periodically review the supply chain and logistics processes to identify and fix any bottlenecks.
• Lean Manufacturing: Adopt lean manufacturing principles to minimize waste and improve efficiency.

By understanding and optimizing the supply chain and logistics, CNC machining operations can run more smoothly, be more cost-effective, and deliver better results. Whether you’re just starting out or looking to improve your processes, focusing on these aspects can make a big difference.

Staying updated with future trends in CNC machining is crucial. Why? Because the world of manufacturing is always changing. New technologies and innovations are making processes faster, more efficient, and more precise. If you don’t keep up, you’ll fall behind. Let’s dive into some of the exciting trends shaping the future of CNC machining.

• Automation and Robotics: Automation is about machines doing tasks with little or no human intervention. Robotics is a big part of this. Picture robotic arms loading and unloading materials. This means factories can run 24/7 without getting tired or making mistakes.
• Artificial Intelligence (AI) and Machine Learning (ML): AI and ML are like super-smart computer programs. They help machines learn from data and improve over time. This means machines can get better at tasks like predicting when maintenance is needed or optimizing cutting paths to save time and material.
• Internet of Things (IoT): IoT connects machines to the internet. This allows them to share data and talk to each other. Imagine a CNC machine that can send a message to your phone if there’s an issue or connect to other machines to coordinate production.
• Advanced Materials: New materials, like composites and high-performance alloys, are being developed. CNC machines need to adapt to work with these tougher, lighter, or more durable materials. This opens up possibilities for creating stronger and lighter products.
• Additive Manufacturing (3D Printing): While CNC machining is subtractive (it removes material), 3D printing is additive (it adds material). Combining these two can lead to hybrid machines that offer the best of both worlds. This means more design flexibility and less waste.
• Enhanced Software: Software is the brain of CNC machines. New software developments are making machines easier to program and operate. This means even beginners can get the hang of it quickly, and experts can do more complex tasks with ease.

• Increased Efficiency and Productivity: With automation, machines can work around the clock without breaks. AI can optimize processes, reducing downtime and waste. This means more parts produced in less time, at a lower cost.
• Higher Precision and Quality: Advanced materials and better software ensure that parts are made to exact specifications. This reduces errors and increases the overall quality of the final product.
• Flexibility and Customization: The combination of CNC machining and 3D printing allows for greater design flexibility. Companies can easily customize products to meet specific customer needs without significant retooling.
• Predictive Maintenance: With IoT and AI, machines can predict when they need maintenance before something breaks down. This means fewer unexpected stops and longer machine life.
• Skills Development: As machines become smarter and easier to use, the skillset needed to operate them will evolve. Workers will need training in new technologies, but the barrier to entry will lower, making these advanced tools accessible to more people.

The world of CNC machining is always evolving. Here are some of the exciting trends and future directions:

• Automation and AI Integration: More CNC machines are incorporating automation and artificial intelligence to increase efficiency and reduce human error. This includes automated tool changes, real-time monitoring, and predictive maintenance.
• Additive and Hybrid Manufacturing: Combining CNC machining with additive manufacturing (3D printing) is becoming more common. This hybrid approach allows for greater design flexibility and material efficiency.
• Improved Materials: Advances in material science are leading to the development of new materials that are easier to machine and offer better performance characteristics, such as increased strength or lighter weight.
• Micro and Nano Machining: As technology progresses, there is a growing demand for even smaller and more precise parts. Advances in micromachining techniques are making it possible to create components at the micro and nano scale.
• Sustainability: The push for more sustainable manufacturing practices is affecting CNC machining. This includes using more eco-friendly materials, improving energy efficiency, and reducing waste through better process optimization.

Innovations and research are crucial for the CNC (Computer Numerical Control) machining industry. They help improve efficiency, precision, and capabilities of machining processes. These advancements make it possible to create more complex parts faster and more accurately. Keeping up with innovations ensures that businesses remain competitive and can meet the evolving demands of various industries, from aerospace to consumer electronics.

5-Axis Machining:

• What it is: Traditional CNC machines work on 3 axes (X, Y, and Z). 5-axis machines can move a tool or a part along two additional axes (A and B).
• Impact: This allows for the creation of very complex parts in a single setup, reducing production time and increasing accuracy.
• Example: Imagine making a detailed sculpture. With 3-axis machining, you’d need to reposition the material several times. But with 5-axis machining, the machine can reach all angles in one go.

Hybrid Manufacturing:

• What it is: Combining CNC machining with additive manufacturing (3D printing).
• Impact: This approach offers the best of both worlds. You can 3D print a part and then machine it to get a very smooth finish and precise dimensions.
• Example: Think of making a custom metal part with intricate internal structures. You can 3D print the part for the internal complexity and use CNC machining for the outer surface precision.

AI and Machine Learning:

• What it is: Integrating Artificial Intelligence (AI) to optimize machining processes.
• Impact: AI can predict tool wear, optimize cutting paths, and even suggest improvements. This leads to longer tool life and consistent quality.
• Example: AI can alert an operator that a tool is about to wear out before it actually happens, preventing potential defects and machine downtime.

Smart Materials:

• Focus: Developing materials that can change properties based on external conditions.
• Potential Impact: These materials can adapt during machining to improve the process or the final product. For instance, materials that become harder or softer based on temperature can make machining more efficient.

Nano-Machining:

• Focus: Improving the ability to machine extremely small parts with high precision.
• Potential Impact: Essential for industries like medical devices and electronics, where tiny, precise components are crucial.
• Example: Creating a tiny gear for a medical implant that needs to be incredibly precise and smooth.

Environmental Sustainability:

• Focus: Researching ways to make CNC machining more eco-friendly.
• Potential Impact: Reducing waste, recycling materials, and using energy-efficient methods can make the industry more sustainable.
• Example: Developing biodegradable cutting fluids to replace traditional ones, which are often harmful to the environment.

• Tesla’s Gigafactory: Tesla uses advanced CNC machines in their Gigafactories to produce car components with high precision and efficiency. They have integrated AI to streamline their processes, reducing waste and improving production speed.
• GE Aviation: GE Aviation uses 5-axis CNC machining to create complex jet engine parts. This innovation allows for the production of parts that are lighter and stronger, contributing to more fuel-efficient engines.
• Local Motors: This company utilizes hybrid manufacturing by combining 3D printing and CNC machining to create custom vehicles. This approach allows them to innovate rapidly and produce small batches of vehicles tailored to specific needs.

Definition: An imaginary line that the CNC machine moves along.

Explanation: CNC machines often move in multiple directions, called axes. Common machines have three axes: X, Y, and Z. Some advanced machines have more.

Example: Imagine drawing a line on paper. Moving your pencil left and right is the X-axis. Moving it up and down is the Y-axis. Moving it closer or away from you is the Z-axis.

Definition: Software used to design parts and products on a computer.

Explanation: Engineers and designers use CAD software to create precise drawings and models. You then use these models in CNC machining.

Example: AutoCAD and SolidWorks are popular CAD software programs.

Definition: Software that translates CAD designs into instructions for CNC machines.

Explanation: Once you have a design, CAM software converts it into a code (often G-code) that CNC machines can understand to produce the part.

Example: You use software like Fusion 360 and Mastercam for CAM.

Definition: A method for automating control of machine tools using software.

Explanation: Instead of manually operating a machine, CNC uses computers to control the movements and operations with extreme precision.

Example: CNC milling machines and CNC lathes are common types of CNC machines.

Definition: A type of cutting tool used in CNC milling machines.

Explanation: End mills come in various shapes and sizes to perform different cuts. They remove material from the workpiece.

Example: You use a flat-end mill for simple cutting and a ball end mill for more complex, rounded cuts.

Definition: The speed at which the cutting tool moves through the material.

Explanation: The feed rate is crucial for achieving the right balance between speed and accuracy. Too fast, and you risk damaging the tool or material. Too slow, and you waste time.

Example: If cutting aluminum, a common feed rate might be around 500 millimeters per minute.

Definition: The language used to control CNC machines.

Explanation: G-code consists of a series of commands that tell the CNC machine what to do, such as where to move, how fast to go, and what path to follow.

Example: G01 X10 Y10 is a G-code command that tells the machine to move to the coordinates X=10, Y=10.

Definition: The part of the CNC machine that holds and rotates the cutting tool.

Explanation: The spindle must be strong and fast, as it does the actual cutting work. It can rotate at various speeds, depending on the material and the required precision.

Example: In a CNC milling machine, the spindle might rotate up to 20,000 RPM (revolutions per minute).

Definition: The allowable deviation from a specified dimension.

Explanation: Tolerance indicates how precise a part needs to be. Tight tolerances mean the part must be very close to the specified dimension, while loose tolerances allow more variation.

Example: A tolerance of ±0.01mm means the part can be 0.01mm bigger or smaller than the specified size.

Definition: The material that will be machined into a finished product.

Explanation: The workpiece is the raw material, such as metal, plastic, or wood, that you start with.

Example: You can machine a block of aluminum into a car engine part.

This ultimate guide to CNC machining offers a comprehensive overview of CNC machining essentials, from the basic principles and types of machines to advanced topics like programming, quality control, and setup and operation. It also covers specific applications across various industries, cost considerations, and the benefits of outsourcing CNC machining services. Additionally, it delves into the importance of certifications and training, legal and regulatory considerations, market analysis, supply chain and logistics, future trends, and ongoing innovations and research.

For beginners, this guide serves as an essential primer, providing a solid understanding of the fundamentals and preparing you for further learning and hands-on experience.

For experienced CNC machining engineers, it offers valuable insights into advanced techniques, industry-specific applications, and future trends, helping you refine your skills and stay updated.

CNC machining manufacturers can benefit from understanding the comprehensive scope of CNC machining, from setup and operation to supply chain management and legal considerations, equipping them to stay competitive and adapt to industry changes.

Buyers of CNC machining services will gain detailed insights into what to expect from CNC machining providers, the cost factors involved, and how to select a reliable supplier, aiding them in making informed sourcing decisions.

Choosing the proper material for rapid prototyping is a multidimensional decision that includes recognizing both the material properties, and the specific requirements of the initiative. Whether it be something simple such as PLA or a more advanced option like carbon-fiber-filled Nylon, they all have a role to play depending on what you are doing.

And when it comes to prototyping, whether that be functionality test models, high-temperature resistance materials, or biocompatible, there is a rapid prototyping material to suit your needs. Don’t forget to account for things like anisotropy and your print parameters to make sure that your prototypes are as realistic and predictable as possible.

Use this guide to prepare your design for intelligent prototyping decisions.

Key Perspective: Choosing materials isn’t just about their properties, but also about serving the interests of your project. How do you start? Start from the requirements of the application and then further optimize the technical feasibility.

Contact us, Great light will provide you with better services and products.

CNC (Computer Numerical Control) machining is a manufacturing process where pre-programmed computer software dictates the movement of factory tools and machinery. This process can control complex machinery, such as grinders, lathes, mills, and routers.

CNC machines can work with a wide variety of materials, including metals (such as aluminum, steel, and titanium), plastics, wood, foam, and even composites.

CNC machining is used in numerous industries, including aerospace, automotive, electronics, medical devices, and manufacturing, among others.

CNC machining offers high precision, repeatability, speed, and the ability to produce complex shapes. It also reduces human error and increases production efficiency.

CNC programming involves creating a set of instructions for the CNC machine to follow, using either G-code or other programming languages. These instructions tell the machine how to move and operate its tools.

CNC milling involves using rotating multi-point cutting tools to remove material from a workpiece, while CNC turning involves rotating the workpiece itself against a single-point cutting tool.

CAD (Computer-Aided Design) software is used to create precise digital models of the parts to be machined. CAM (Computer-Aided Manufacturing) software then translates these designs into instructions that the CNC machine can execute.

The accuracy of CNC machining can vary depending on the machine and the process, but it generally offers very high precision, often within thousandths of an inch (0.001 inches or 0.025 millimeters).

Lead times can vary widely depending on the complexity of the part, the material, and the workload of the machine shop. However, typical lead times range from a few days to several weeks.

Common applications include prototyping, custom parts production, tooling, mold making, and the manufacture of complex components used in machinery, electronics, and medical devices.
